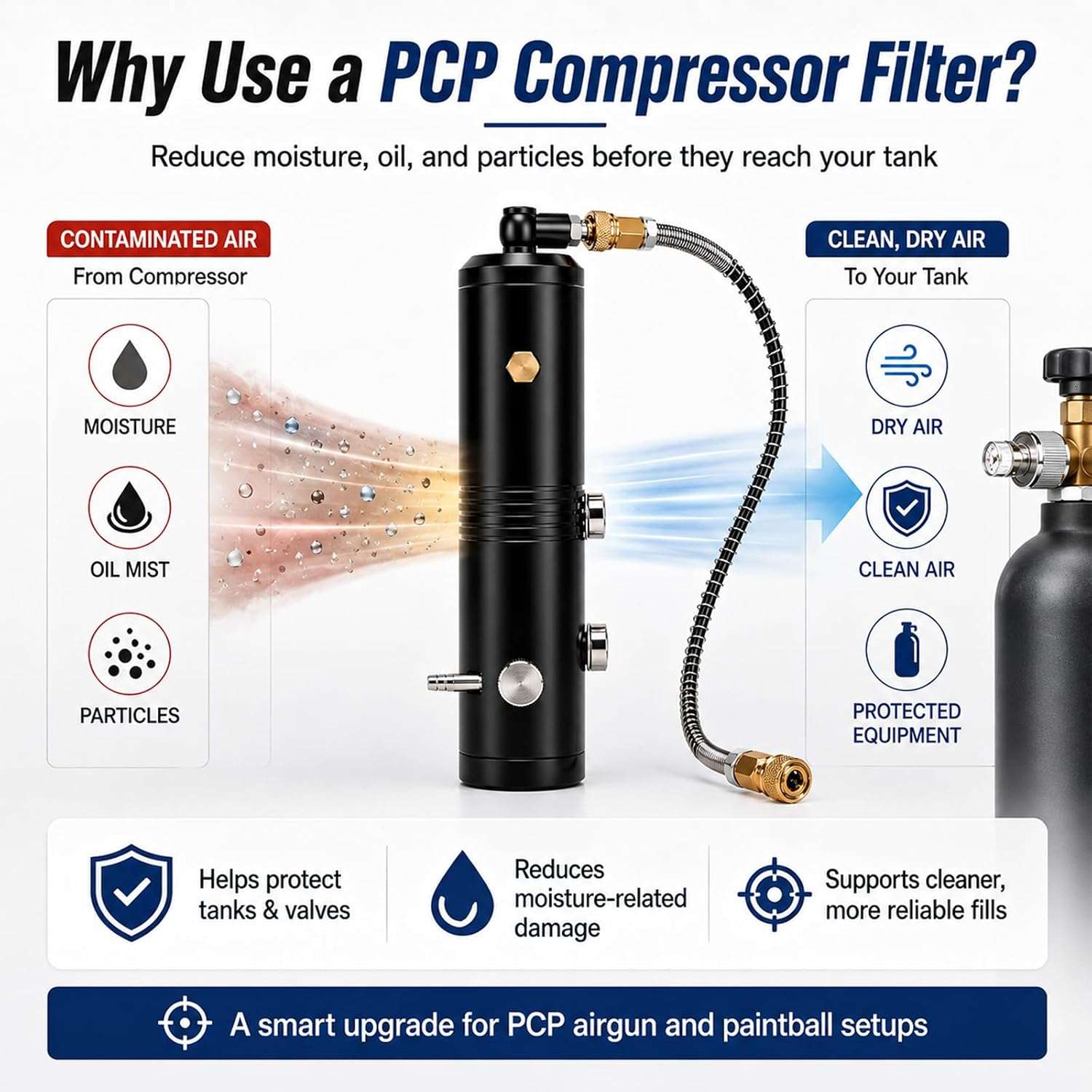

Keep your PCP air system cleaner and drier with the 5800 PSI PCP Air Compressor Oil and Water Filter Separator. This high-pressure inline filter is designed to help reduce moisture, oil mist, and particulate contamination during the filling process.
The filter uses a two-stage filtration design combining activated carbon and molecular sieve media. Together, these filtration layers help improve air quality before compressed air enters your PCP airgun, fill probe, or storage tank.

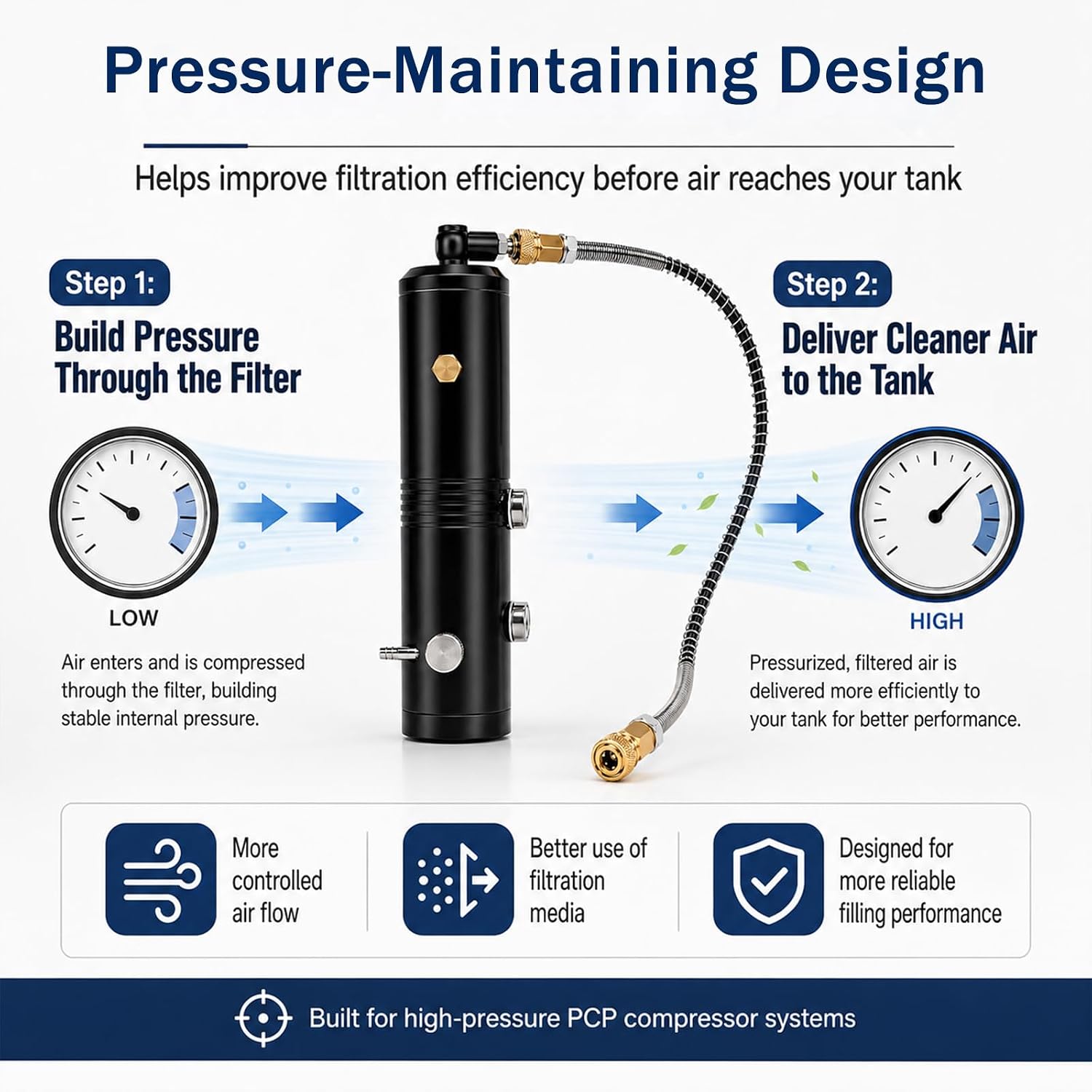

Its pressure-maintaining design allows air to pass through the filtration media at a controlled rate, helping improve contact with the filter media and supporting more consistent filtration performance. The compact body and flexible 360° swivel hose make it easy to install in a variety of compressor configurations.
With a maximum working pressure of 5800 PSI / 30 MPa, this separator is suited for compatible PCP compressors and high-pressure air-filling systems. The rugged housing, metal fittings, and flexible connection hose are built for repeated use when properly installed and maintained.

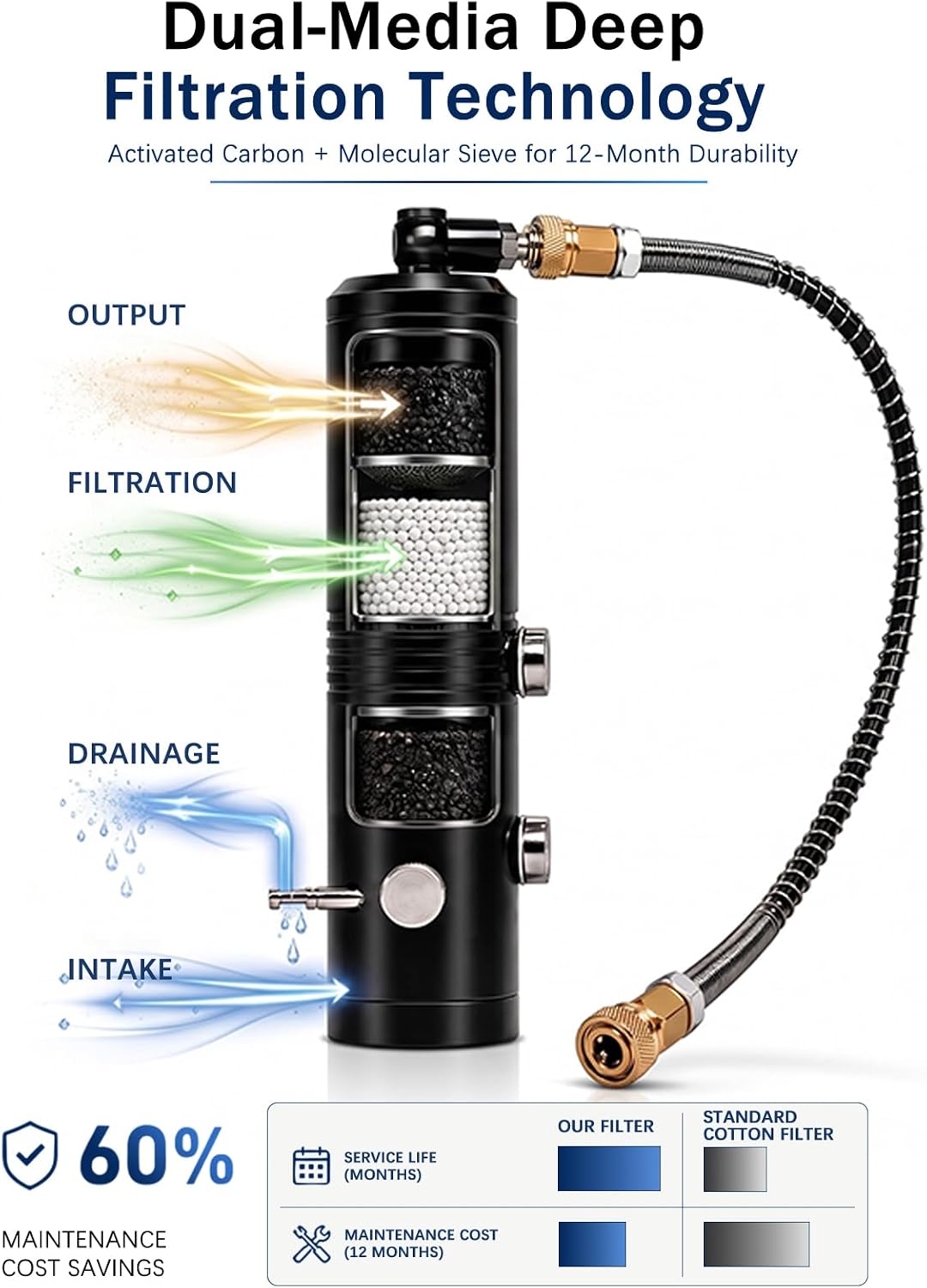

The dual-media filtration system combines activated carbon and molecular sieve material to help reduce moisture, oil vapor, and airborne particles in compressed air.
The internal design helps maintain controlled pressure through the filter, supporting more effective use of the filtration media during the filling process.

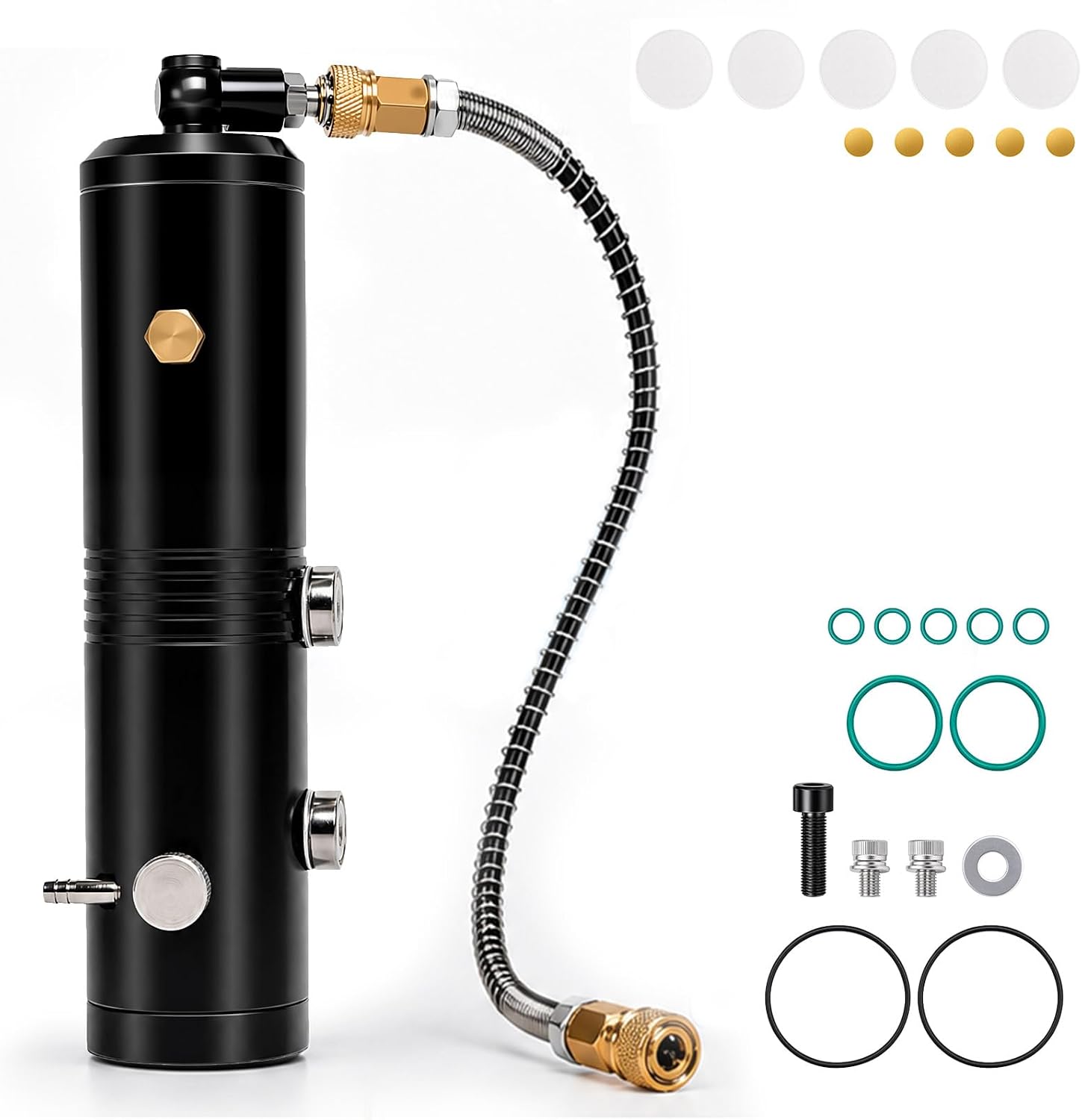

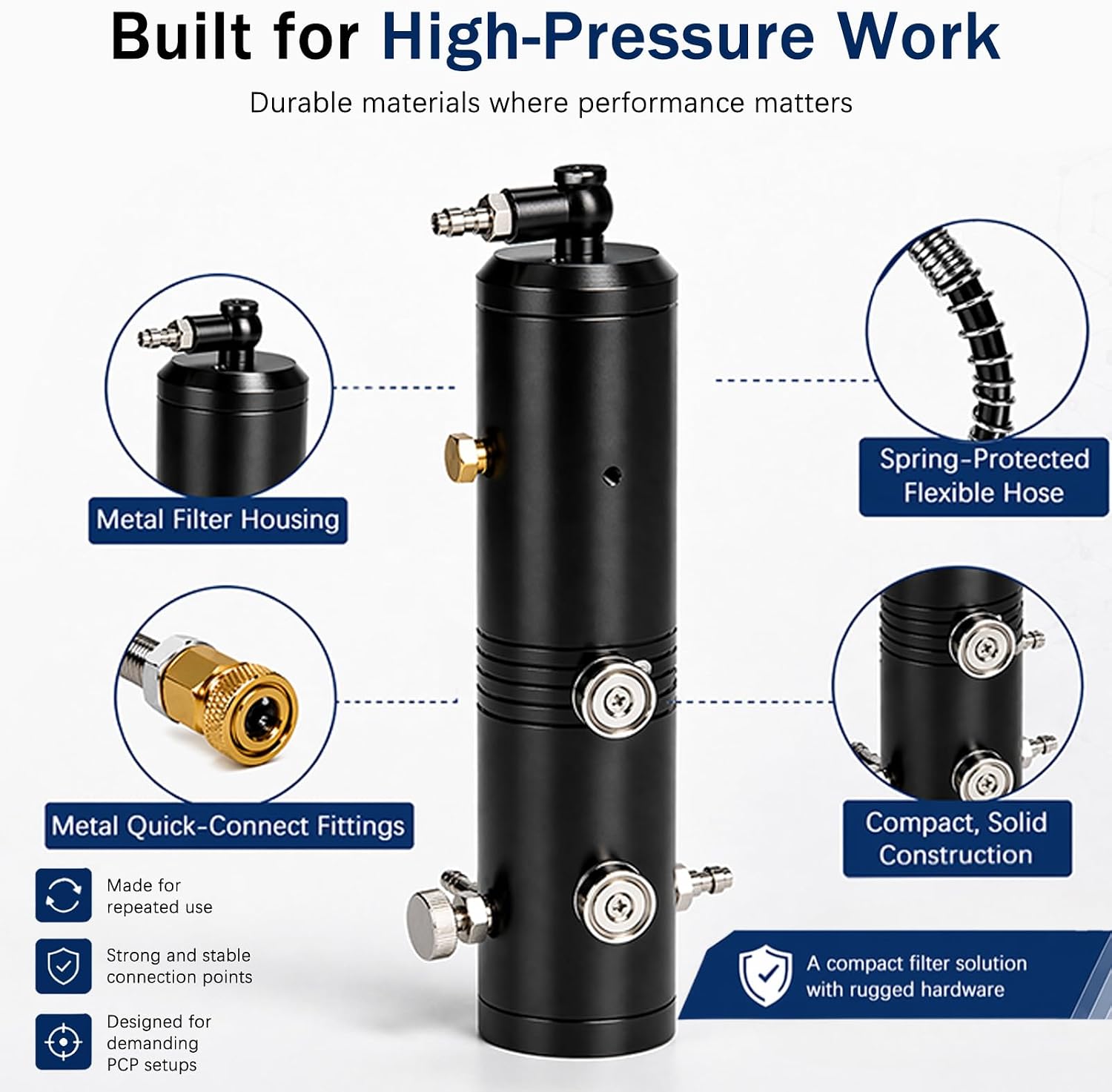

The assembly features a durable filter body, metal quick-connect fittings, spring-protected components, and a flexible high-pressure hose for use in compatible PCP compressor systems.

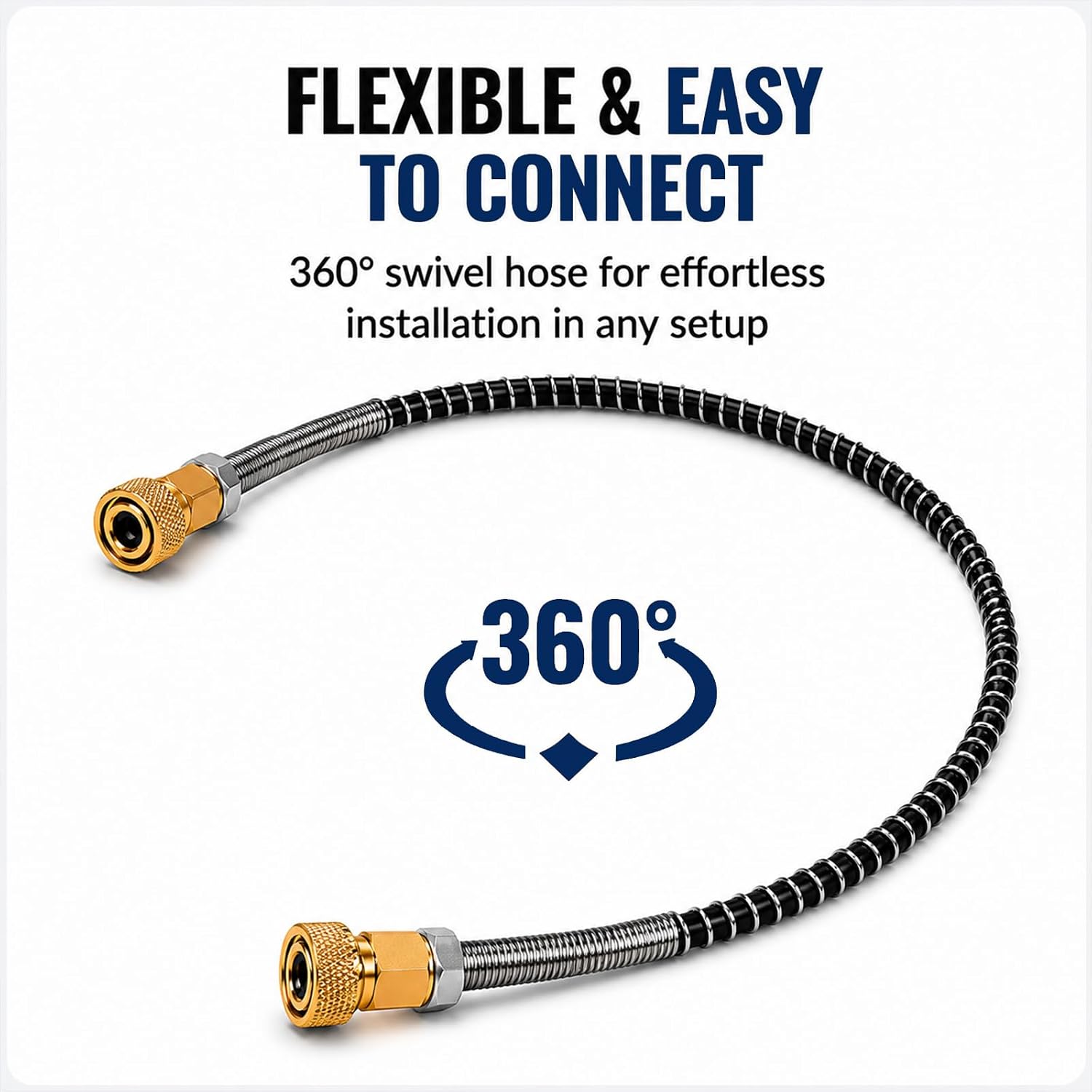

The swivel hose helps simplify installation and allows the filter to be positioned in different orientations without placing unnecessary strain on the connection.
The small footprint makes this filter easy to install, transport, and store. It is suitable for home workshops, shooting ranges, hunting setups, and portable PCP filling systems.
| Specification |
Details
|
|---|---|
| Product type | PCP air compressor oil and water separator |
| Maximum pressure | 5800 PSI / 30 MPa |
| Power source | None required |
| Filtration type | Dual-media filtration |
| Filter media | Activated carbon and molecular sieve |
| Hose diameter | 8 mm |
| Hose length | 22 inches |
| Connection compatibility | 8 mm / M10-style connections, depending on configuration |
| Hose design | Flexible 360° swivel hose |
| Mounting options | Magnetic or screw mounting, where applicable |
| Item weight | Approximately 2 lb |
| Product dimensions | Approximately 2.5 × 3 × 9 inches |

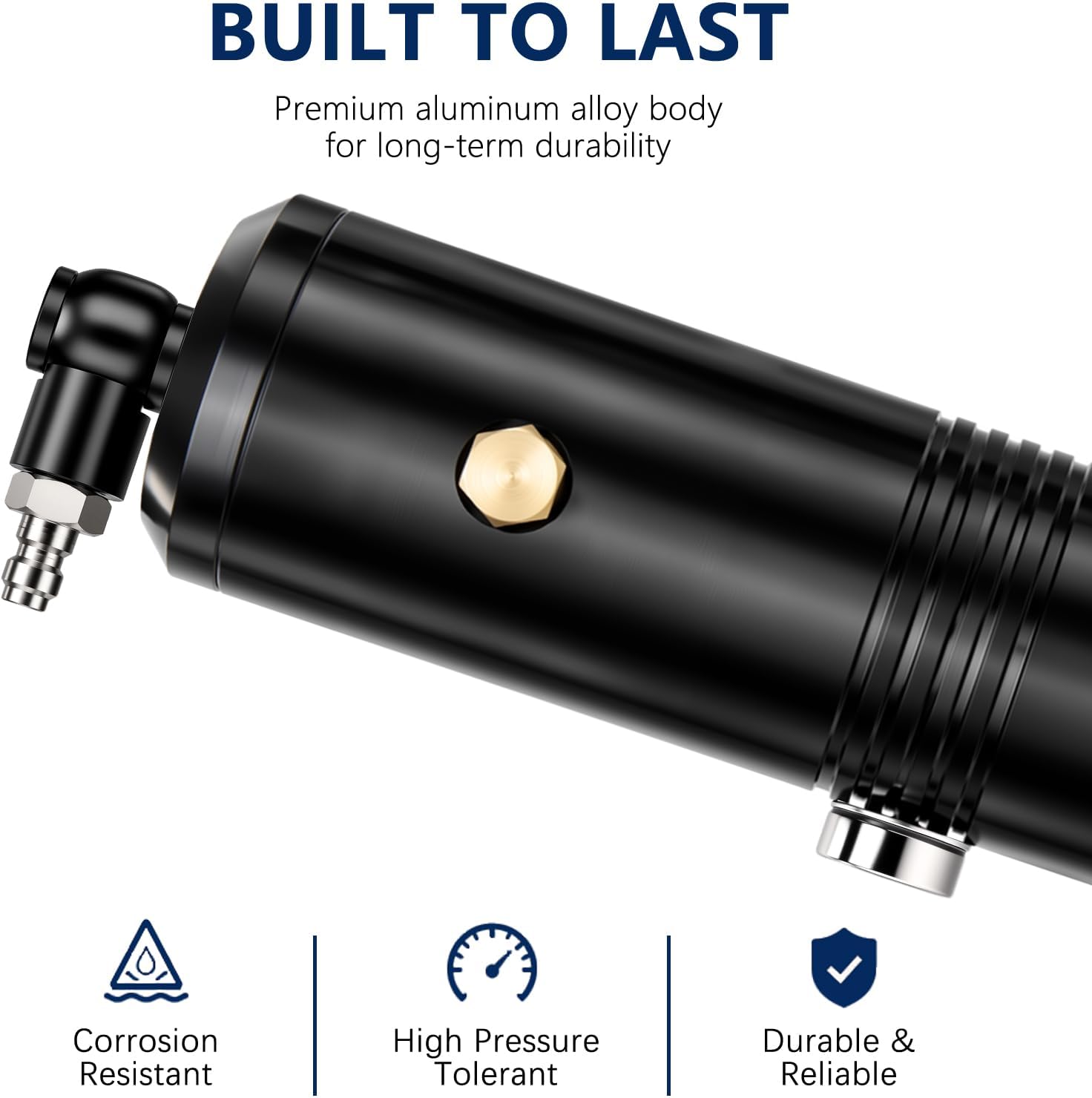

| Construction | Metal components with aluminum-alloy filter body, according to supplied specifications |
| Intended use | Compatible high-pressure PCP air compressors and air-filling systems |
High-pressure equipment can be dangerous if incorrectly installed or operated. Use only with compressors, hoses, fittings, and air tanks rated for the same or higher pressure as the system output. This product is rated to a maximum of 5800 PSI / 30 MPa based on the supplied specifications. Do not exceed the stated pressure rating. Inspect all components before use, ensure connections are secure, and follow the compressor and filter manufacturer’s instructions. Never modify the filter or use damaged components.
